Gen 2 Vue Energy Monitor

Download Gen 2 Vue Spec Sheet PDF
Supported Systems
1) single-phase up to 240VAC line-neutral; 2) single, split-phase 120/240VAC; and 3) three-phase up to 415Y/240VAC (no Delta)
WiFi
2.4 GHz 802.11b/g/n
Input Power Rating
100-240VAC 50-60Hz
Power Consumption
< 3W
Certification
FCC ID
2AS6P-EMPCTV2
Dimensions
4.1″ x 3.1″ x 1.1″ (105mm x 80mm x 30mm)
Operating Conditions
-40 to +122° F (-40 to +50° C) | 0 to 80% RH
200A sensor ports
3 @ 3.5mm two-pole audio connector
50A sensor ports
16 @ 2.5mm two-pole audio connector
WiFi antenna port
1 @ RP-SMA coaxial connector
Wire harness (power) port
1 @ 4-pin Molex connector
Shop Gen 2 Vues
Emporia Gen 2 Vue Energy Monitor Dimensions

Gen 2 200A Current Sensor

Download Gen 2 Vue Spec Sheet PDF
Frequency
50-60Hz
Max Current
200A
Output
0.0 – 0.333V (Measuring 0-200A)
Accuracy
±2%
Dimensions
2.6″ x 1.7″ x 1.6″ (65mm x 44mm x 41mm)
Window Diameter
1″ (26mm)
Cable Length
39″ (1m)
Connector
3.5mm right-angled two-pole audio connector
Shop Gen 2 Vues
Emporia Gen 2 200A Current Sensor

Gen 2 50A Current Sensor

Download Gen 2 Vue Spec Sheet PDF
Frequency
50-60Hz
Max Current
50A
Output
0.0 – 0.333V (Measuring 0-50A)
Accuracy
±2%
Dimensions
1.6″ x 0.9″ x 1″ (41mm x 23mm x 26mm)
Window Diameter
0.39″ (10mm)
Cable Length
39″ (1m)
Connector
2.5mm right-angled two-pole audio connector
Shop Gen 2 Vues
Emporia Gen 2 50A Current Sensor

Smart Home EV Charger

Download EV Charger Spec Sheet PDF
Type
Level 2 / 48A
Input Voltage
208 / 240VAC @ 50 / 60Hz
Power Charge
11.5kW (240V/48A) / 9.6kW (240V/40A) /10kW (208V/48A) / 8.3kW (208V/40A)
Power Wiring
NEMA Type 14-50P (up to 40A) / Hardwired (up to 48A)
Dedicated Breaker /
Max Charge
15A (2.9kW / 12A max charge)
20A (3.8kW / 16A max charge)
25A (4.8kW / 20A max charge)
30A (5.8kW / 24A max charge)
35A (6.7kW / 28A max charge)
40A (7.7kW / 32A max charge)
45A (8.6kW / 36A max charge)
50A (9.6kW / 40A max charge)
60A (11.5kW / 48A max charge) Hardwired Only
70A (11.5kW / 48A max charge) Hardwired Only
80A (11.5kW / 48A max charge) Hardwired Only
Connector
24’ cable SAE J1772 connector - Compatible with any EV (adapter required for Tesla)

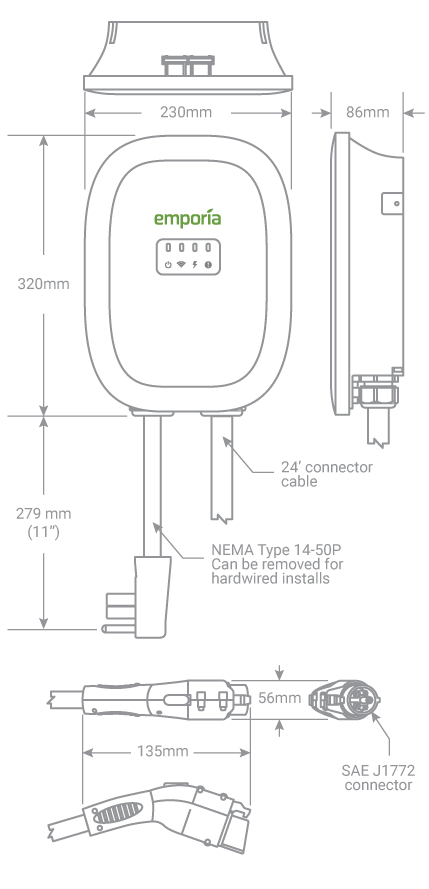

Dimensions
Charging Station: 12.6" x 9" x 3.4" (320mm x 230mm x 86mm)
Charging Gun: 5.3" x 2.2" (135mm x 56mm)
Enclosure
Watertight NEMA Type 4 indoor/outdoor
Certifications
FCC Parts 15b & c
UL Listed E528156
Energy Star Certified 2397026
WiFi
2.4 GHz 802.11b/g/n
FCC ID
2AS6P-EMEVSE1
Shop EV Chargers
EV Charge Tech Specs

V2X Bi-Directional Charger

Download EV Charger Spec Sheet PDF
Type
V2X (V2H/V2G) Bi-Directional / Level 2 / 48A
Inverter
Integrated silicon-carbide-based AC/DC inverter designed by BREK Electronics
Charging
Power: 11.52kW
Input: 240V/48A AC
Output: 0-450V/40A DC
Peak Efficiency: >98%
Discharging
Power: 11.52kW
Input: 0-450V/40A DC
Output: 240V/48A AC
Peak Efficiency: >98%
Connector
25’ cable with CCS Type 1 connector
Interface
ISO 15118 V2G interface
Dimensions
Charging Station: 16" x 12" x 4" (406mm x 305mm x 102mm)
Charging Gun: 12" x 3" (305mm x 76mm)
WiFi
2.4 GHz 802.11b/g/n
Enclosure
IP66 waterproof indoor/outdoor
Certifications
This product is in the design phase, with expected release in 2023. Like all Emporia products, the Emporia V2X Bi-Directional Charger is being designed with your safety in mind. It will be manufactured to meet the safety criteria defined by these international standards: UL1741SA (Inverter), UL 2231, UL 1998, UL 9741, UL 2202.
V2X Charger Tech Specs

Gen 2 200A Flexible Current Sensor

Frequency
50-60Hz
Max Current
200A
Output
0.0 – 0.333V (Measuring 0-200A)
Accuracy
±2%
Sensor Dimensions
1.7″ x 1.2″ x 0.4″ (43mm x 30mm x 11mm)
Window Diameter
1.4″ (36mm)
Cable Lengths
1 @ 39″ (1m)
1 @ 18″ (0.5m)
Connector
3.5mm two-pole audio connector
Power Adapter Input
120VAC 60Hz
UL listing: I.T.E Power Supply E484562
Power Adapter Output
12V DC
Power Adapter Size
3.25″x 2.25″x 2.25″ (82mm x 55mm x 55mm)
Power Adapter Cable Lengths
1 Input @ 39″ (1m)
1 Output @ 18″ (0.5m)
Shop Flexible Current Sensors
Gen 2 200A Flexible Current Sensor

Vue Utility Connect

Download Vue Utility Connect Spec Sheet PDF
WiFi
2.4 GHz 802.11b/g/n
ZigBee®
Smart Energy Profile 1.1b (IEEE 802.15.4)
Power Adapter Input
100-240VAC 50-60Hz
UL listing: I.T.E Power Supply E361658
Power Adapter Output
5V DC
Power Consumption
< 5W
FCC IDs
2AC7Z-ESP32WROVER and QOQMGM1
Monitor Size
3.4″ x 1.9″ x 0.8″ (86mm x 47mm x 20mm)
Power Adapter Size
2.5″ x 1.6″ x 1.9″ (62mm x 40mm x 49mm)
Operating Conditions
-40° -122° F (-40° – 50° C)
0-80% RH
Shop Vue Utility Connect
Emporia Vue Utility Connect Dimensions

Emporia Smart Plug

Download Smart Plug Spec Sheet PDF
WiFi
2.4 GHz 802.11b/g/n
Max Power
1800W @ 120V
Max Peak Load (1hr/day)
15A
Max Continuous Load
10A
Frequency
50-60Hz
Power Consumption
~1W
FCC ID
2AKBP-X10S
Certification
ETL certified by Intertek 5015249

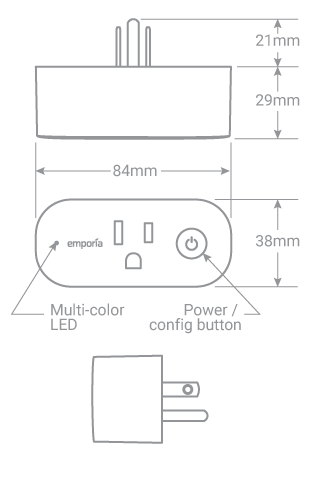

Dimensions
3.3″ x 1.5″ x 1.1″ (84mm x 38mm x 29mm)
Shop Smart Plugs
Emporia Smart Plug Dimensions

Alpha-ESS Home Battery System

Download Alpha-ESS Home Battery System Spec Sheet PDF
Battery Type
Lithium Ion (LiFePO4)
Nominal Voltage
256 V
Energy Capacity
8.2 kWh each (Up to 6 modules for 49.2 kWh)
Usable Capacity
7.8 kWh each (Up to 6 modules for 46.8 kWh)
Max Input Power
11400 W (7.6kWh) | 15000 W (9.6kWh)
Max Input Voltage
600 V
Inverter Efficiency
97.6%
Cycle Life
≥ 10,000
Max Current
38.4 A (1.2)
Operating Temp
-31–140° F (-35–60° C)
Charging Temp
33.8–122° F (1–50° C)
Discharging Temp
-4–122° F (-20–50° C)
Humidity
15–85 %
IP Protection
IP65 (Outdoor)
Certification
Alpha-ESS Battery System Technical Specs
